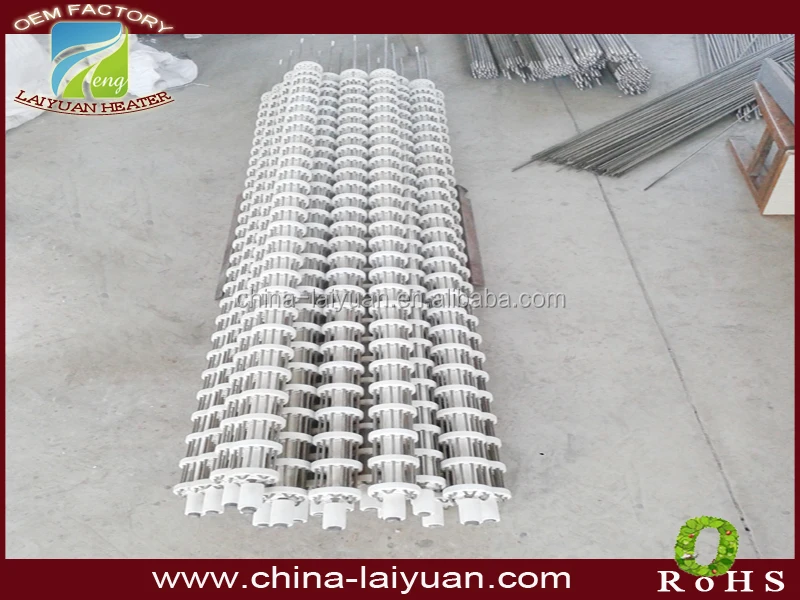

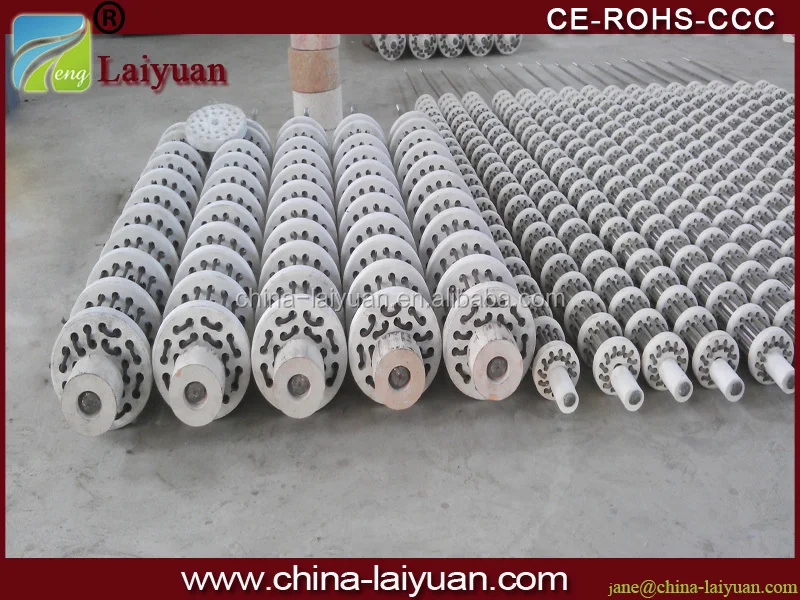

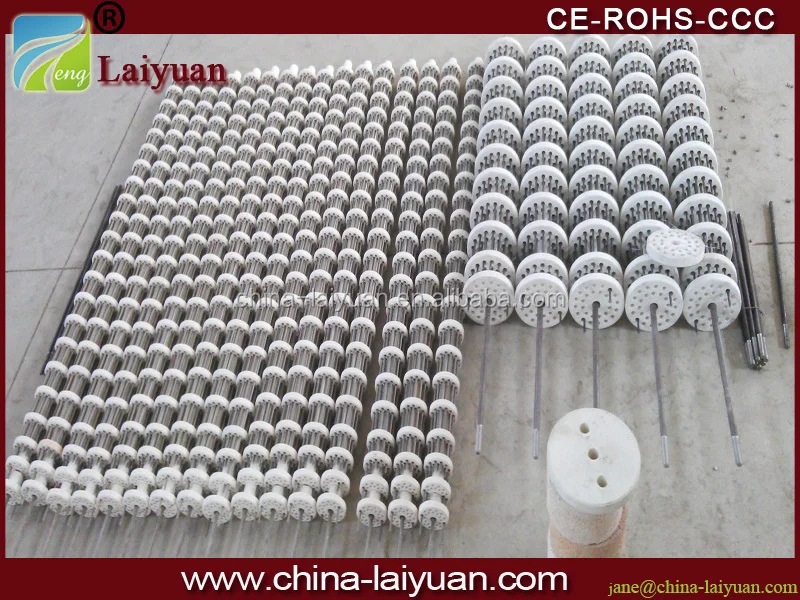

Ceramic Bobbin Heaters Electric Dryer Heating Element

Ceramic Bobbin Heaters Electric Dryer Heating Element

FOB Price:

US 15-1500 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Week

Port:

Shangha/Ningbo

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Paypal /Escrow

Brand:

Laiyuan

Products Model:

LY-CBH-15043

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-CBH-15043

Place of Origin: Jiangsu, China (Mainland)
Condition: New
Type: Infrared Heater
Power Source: Electric
Dimension(L*W*H): D=80mm L=960mm
Weight: 5.5kg/pcs
Voltage: 220VAC
Power(W): 24KW
Certification: CCC/CE
Warranty: 1 Year
After-sales Service Provided: Overseas third-party support available
Full name: Ceramic Bobbin Heaters Electric Dryer Heating Element
Diameter of Bobbin Heater: 80mm(customized)
Resistance: Cr20Ni80,Cr25Al5,Cr27Al7Mo2
Material of Ceramic: 99% High Purity

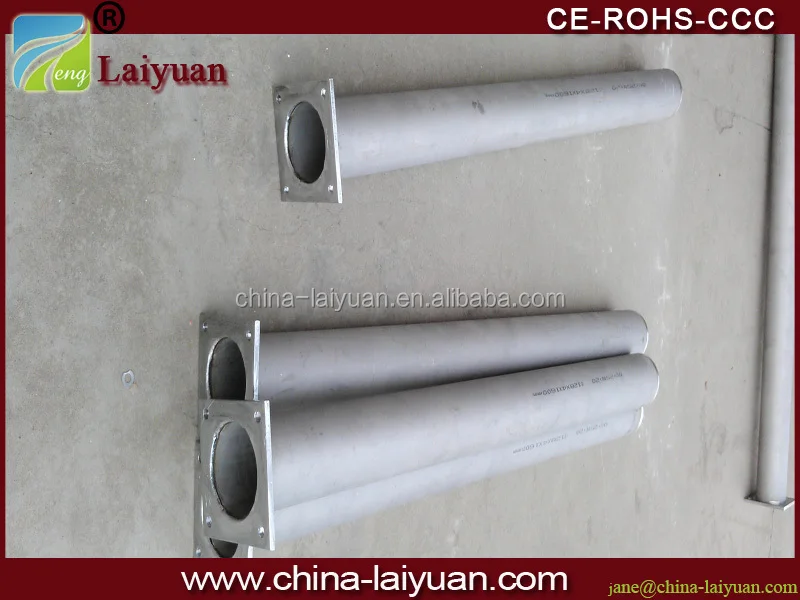

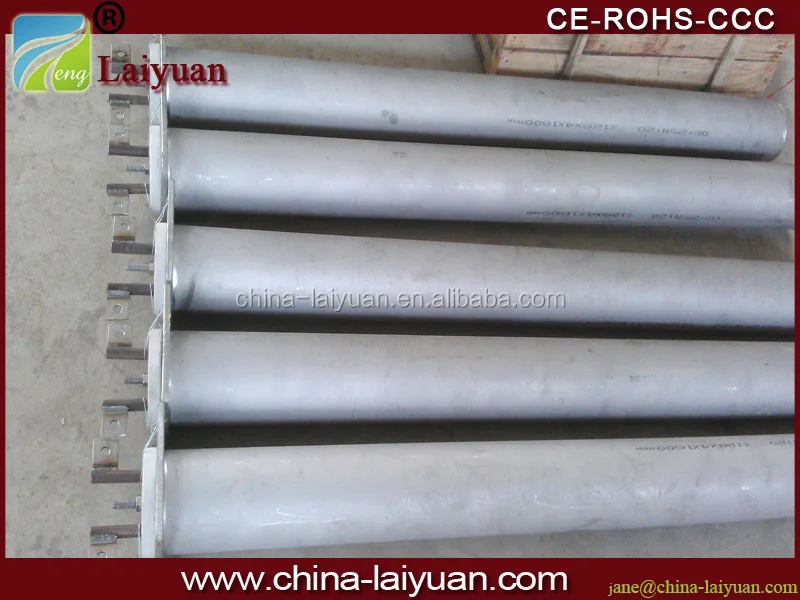

Cover material: SUS304,SUS310S etc
Diameter of Cover: 66m( 31~300mm)
Length: 960mm( 300~6000mm)
Power/Wattage: 22KW(Customized)
Operation Temperature: Max as 1500deg.C
OEM&ODM: YES

Packaging & Delivery

Packaging Details: Foam&Wooden box for Ceramic Bobbin Heaters Electric Dryer Heating Element
Delivery Detail: 7 days for Ceramic Bobbin Heaters Electric Dryer Heating Element

Specifications

Ceramic Bobbin Heaters Electric Dryer Heating Element

The advantages of Bobbin Heater :

1. The controllability of aural inside furnace can be guaranteed.
2. The control of temperature,assemble and maintainace are very convenient and can be easy to sealed.
3. The cubage of hearth is enlarged and throughput is improved because of no muffle po
4.Strong heating ability and high efficiency
5. The refractory steel material is save.

1. The controllability of aural inside furnace can be guaranteed.

2. The control of temperature,assemble and maintainace are very convenient and can be easy to sealed.

3. The cubage of hearth is enlarged and throughput is improved because of no muffle po

4.Strong heating ability and high efficiency

5. The refractory steel material is save.

Bobbin Heater Usage:

1) Avoid to heat over the temperature and overload for long time
2) When the furnace temperature higher than 400 degrees, avoid to be cold immediately.
3) Unload and load the material can’t touch the ceramic heater
4) Pay attention to the red and blue buttons when the furnace on work, and change regularly when on thermal insulation
5) Pay attention to the instrument meter, and deal with in time when the furnace temperature is not matched with the meter
6)The furnace Capacity over 100KW, it’ll be better to fix the ammeter for check in every heat area

1) Avoid to heat over the temperature and overload for long time

2) When the furnace temperature higher than 400 degrees, avoid to be cold immediately.

3) Unload and load the material can’t touch the ceramic heater

4) Pay attention to the red and blue buttons when the furnace on work, and change regularly when on thermal insulation

5) Pay attention to the instrument meter, and deal with in time when the furnace temperature is not matched with the meter

6)The furnace Capacity over 100KW, it’ll be better to fix the ammeter for check in every heat area

Bobbin Heater :

1) After using three to four months, take the ceramic heater, and pour-out the dust in the ceramic heater, and tuner the heater 180 degree.
2) Pay attention to the positive and negative pole, and two to four months make a change.
3) Can touch and hit the heater when take it out.
4) Check the screw regularly for the oxidation looseness,Laiyuan.

1) After using three to four months, take the ceramic heater, and pour-out the dust in the ceramic heater, and tuner the heater 180 degree.

2) Pay attention to the positive and negative pole, and two to four months make a change.

3) Can touch and hit the heater when take it out.

4) Check the screw regularly for the oxidation looseness,Laiyuan.

The main technology and performance:

1.Range tolerance of cold resistance of electric wire ≤3%
2.Insulation resistance between outside protector and electric resistance >2MΩ
3.Diameter of heater tube is from φ31mm~φ300mm
4.Power is from 2KW to 24kw
5.Length of heater tube is from 300 to 6000mm
6.Thickness of cover is from 1.5 to 16mm

1.Range tolerance of cold resistance of electric wire ≤3%

2.Insulation resistance between outside protector and electric resistance >2MΩ

3.Diameter of heater tube is from φ31mm~φ300mm

4.Power is from 2KW to 24kw

5.Length of heater tube is from 300 to 6000mm

6.Thickness of cover is from 1.5 to 16mm

Item	C	Si	Mn	P	S	Cr	Ni
1Cr25Ni20Si2		1.5-2.5	≤1.5	≤0.03	≤0.03	≥24.0	≥18.4

Item

1Cr25Ni20Si2

1.5-2.5

≤1.5

≤0.03

≥24.0

≥18.4

1. Are you Manufacture or Trade Company?
We are manufacture for Industry Heating Element several years .

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It takes 4.5 hours by bus ride from Shanghai .Warmly welcome to visit us freely .

3.What type of payment do you have available?
A: TT and L/C

B: West Union,Money gram and Aliexpress are available for sample order .

4.How can I get some samples?

We are honored to offer you samples .

5.How does your factory do regarding quality control?

Quality without compromise, Laiyuan people always attach great importance to quality controlling from the very beginning to the very end.

Welcome to contact us for more details ,most competitive price for you !

Yancheng Laiyuan Electric Equipment Co.,Ltd. lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Band heater, Bobbin Heater, Heating Part for Hot Air gun and other heating elements.

Laiyuan is by virtue of Electric Technology has a wealth of production experience , Professional Technical Force, a strong R&D department and a dedicated team , to adapt to the market economy competition and technology requirements more than 10 years.

Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.

'QUALITY WITHOUT COMPROMISE', Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect Laiyuan brand .
